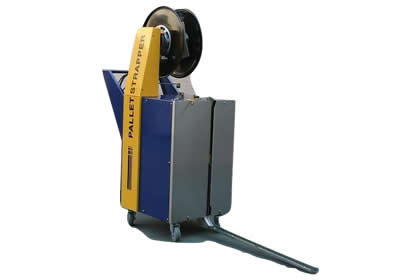

SP-1300A 手推式穿箭式打包机

SP-1300A手推式穿箭式打包机

Specification
Model DBA-1300A1
Power Source 1Phase/ 100V-120V/220-240V/50/60HZ,900W (to be specified)
Packing Speed ≤3 second/strap
Tension Force 5-80kg
Hot-adhering Position side (sealing point H= 650mm from the floor)
Packing Height Range 650mm-∞
Sword
  1. Length:1000mm
    (standard, to be longer as per request)
  2. Width :Approx. 42mm
  3. Height:30mm
  4. Height of bottom: approx. 30-48mm from floor
  5. Extendable sword
Applicable PP or PET Strap Width 9,10,12,13,15,16mm,Thickness(0.5-1.0)mm (to be specified)
Applicable Strap Paper Core 200,230,280 and 406mm x 200-250mm (to be specified)
Packing Type Parallel strapping
manual packing
Electrical Configuration PCB control or Siemens PLC for optional (price is different)
Motor :DSI
Photoelectric sensor: P+F
Proximity switch: DSI
Electric relay: Schneider
Magnetic contactors: Schneider

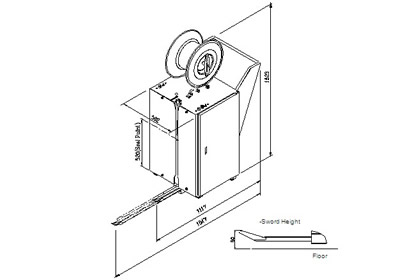

Machine Dimension L1870 x W 550 x H1500mm
Packing Dimension L900 x W 600 x H1650mm
Machine Weight N.W:150KGS  G.W:175KGS
Environment Condition Temperature:0℃-50℃ ,humidity:<99%
Noise ≤50DB

1 Tools 工具 1SET
2 Arch Flap Spring 弓架活页弹簧 5PCS
3 ension Jaw Spring紧力臂夹刀弹簧 1PC
4 Tension Adjust Arm Spring 紧力弹簧 1PC
5 Brake tension Arm Spring 紧力臂制动器弹簧 1pc
6 All other kind of Spring(1pc each)所有其他品种弹簧 1SET
7 Heater Plate 电热头 1PC
8 Instruction Manual and Part List 说明书 1copy
